We at Macon value environmental resources and are keen to utilize them in constructive and sustainable way. In the field of solar pv, we have designed and developed products for applications in off-grid power generation, solar lighting, shipping ports, roads, railways, airports, industrial, agriculture & defense.
Macon is also into design and development work for bulk quantity orders. Trusted by renowned OEMs in India and outside, the company exports to several countries globally. Focus is on quality control and assurance at every step of manufacturing and testing.
The products have been certified as per IEC, RETS, CE standards.

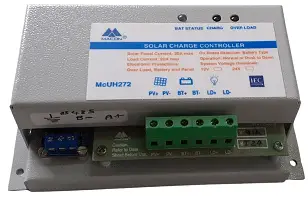

Solar Charge Controller for solar high mast lights upto 120w
Dusk to dawn solar Charge Controller with USB mobile charging
Solar Home Lighting System
Solar LED Street Lights
Solar High Mast Lights
Design & Development
We undertake design, development, manufacture and supply in bulk quantity of new products as per requirement. We have a focused and well equipped R&D facility with committed team. Strong research orientation enables us to anticipate and exceed customer expectations for new products and services. Our R&D team is a fine blend of experience, expertise, professionalism and dynamism. Feel free to write in with your specific requirements.
Frequently Asked Questions
What is solar charge controller?
Solar charge controller is an electronic device which is connected between solar pv panel and the battery. The main function of solar charge controller is to regulate battery charging process using power from the solar panel which includes multiple battery and panel protections for the system. Solar charge controllers are rated as per maximum input voltage and maximum charging current. These are further divided into two types based on technology used which is PWM or Pulse Width Modulation solar charge controller and MPPT or maximum power point tracker solar charge controller.
What is the difference between PWM and MPPT solar charge controllers?
Solar charge controllers are mainly of 2 types, PWM & MPPT. Pulse Width Modulation (PWM) solar charge controllers draws current out of solar panel just above battery voltage. Maximum Power Point Tracking (MPPT) solar charge controllers dras current out of solar panel at maximum power voltage. The MPPT charge controllers convert excess voltage into amperage. The voltage from solar PV module will drop down, with a corresponding increase in the current amperage. This increase in current will lead to faster recharge of battery. These MPPT solar charge controllers automatically adjust to derive maximum power from the solar pv panel to charge battery & solar pv panel power losses are significantly reduced. MPPT provide increase in charging efficiency of upto 30% compared to PWM solar charge controllers. This improvement also varies based on ambient temperature of solar pv panel.
What is the difference between polycrystalline and monocrystalline solar panel?
Monocrystalline solar panels are cut from a single source of silicon. The composition of these cells is purer since each cell is made from a single piece of silicon, thus the electrons have more space to flow making them more efficient. These are also more space efficient meaning smaller in size compared to polycrystalline solar panels. Monocrystalline solar panels also perform better in high heat and warmer temperatures. The performance over the period of it's life is also better than polycrystalline solar panels. Due to higher quality raw material used, the price of monocrystalline solar panel is also normally more than polycrystalline solar panel. Monocrystalline solar panels generally have a black coloured hue. Polycrystalline solar panel cells are blended from multiple silicon sources and are less efficient. Instead of using single silicon crystal, polycrystalline solar panels are made by blending multiple raw fragments of silicon together in square moulds and cooling them down to form wafers. Since the cells are made of multiple crystals, the electrons have relatively less space to flow. These are cheaper in cost but have lesser efficiency, performance life and are also happen to be bigger in size due to lesser efficiency compared to monocrystalline solar panel. The blending of several silicon layers gives polycrystalline solar panels an uneven blue coloured hue.
What are N-type and P-type solar cells?
P-type cells are built with a silicon wafer doped with boron. As boron has one less electron than silicon, it produces a positively charged cell. P-type cells are affected by light-induced degradation (LID), due to which there is drop in output due to light exposure.
N-type cells are doped with phosphorus, which has one more electron than silicon, which makes the cell negatively charged. N-type cells are immune to boron-oxygen defects, hence are not affected by light-induced degradation (LID). This leads to much lesser degradation and hence retains higher efficiency over the life of the solar panel.
What is battery management system (BMS)?
A battery management system (BMS) is an electronic system that manages various functions of a rechargeable battery (cell or battery pack) like high/low volatge protection, reverse polarity protection, monitoring its state, temperature compensation function etc. But what should be the most important aspect is cell or battery balancing. In this, each cell or series in the battery is monitored for it's individual charging & discharging ratio.
This is done is 2 ways-
Passive balancing: Here the energy is drawn from the most charged cell and dissipated as heat, usually through resistors.
Active balancing: Here energy is drawn from the most charged cell and transferred to the least charged cells, usually through capacitor-based, inductor-based or DC-DC converters across the pack.
Use of battery or cell balancing is a must while using any Lithium-ion or Lithium-ion phosphate/LiFePO4/LFP battery.
